High Quality Obstacle Lights ZOM-2-VP™. ICAO type A.

Aviation Low-intensity obstruction lightalt="Obstacle Lights ZOM-2-VP Youtube"

ZOM-2-VP >10cd, ICAO type «A»

30-265V AC/DC.


Obstacle Lights ZOM-2-VP


The low intensity obstruction light ZOM-2-VP is a modification of the aviation omnidirectional view signal-light device combining the innovative research developments of our engineers with the vandal-proof body light equipment. This device has proved to be a reliable solution with excellent performance.

The model was presented on the market in 2015. The LED obstruction lights module was developed using long-term production experience of our engineers and business case studies of the best national experts in the field of lighting engineering, construction and electrical engineering.

This model combines the innovative trends in the light-signal equipment field and modern shockproof obstruction light body. The specific and unique feature of this model is that it emits the light signal vertically, whereby the rated emitted signal intensity values are compliant respectively of the horizon.  Quality control at all production and supply stages enables to prevent any claims.


Function objective:

The aviation obstruction lights ZOM-2-VP are produced according to 27.40.39-004-28320930-2018 specifications and are intended for light-marking of high objects (obstructions), which pose dangers for air transport (high residential and office buildings, stacks, cooling towers, relay mobile communication masts, tower cranes, water towers, bridge pylons, power transmission towers, wind turbines,  buildings in the vicinity of airfields).

The lights are light-signal devices of red steady, which completely comply with ICAO classification for the low intensity obstruction lights, type A, which are mounted on high stationary objects.



Benefits of our solutions:



·     Broad supply voltage band allows connecting our obstruction lights to alternating and direct current

    without observation of polarities.

·     Built-in status monitoring system allows working capacity remote control (full obstruction lights

    complex as well as each obstruction light separately).

·     Status monitoring system contains galvanically isolated, normally-closed contacts allowing seamless

    integration into any remote monitoring system.



Key features:



·      Based on LED-technology;

·      Extremely reliable – long lifetime;

·      Very low power consumption;

·      30-265V AC/DC nominal operating voltage;

·      Stabilized light output;

·      Easy to install, several mounting sets available;

·      Long maintenance intervals;

·      Supply power voltage variations do not affect to light output;

·      Very low total lifetime costs;

·      Lightweight and small – low wind load factor;

·      No RF-radiations;

·      Two (2) years warranty;

·      Patented.



Main standards and requirements compliance:

·    Order of Federal Air Transport Agency, Rosaviatsiya order, ¹262, dated of August 25, 2015;

·    State Aviation Administration of Ukraine;

·    ICAO Annex 14, 4th Edition, July 2004;

·    ICAO low intensity type A;

·    TR CU 004/2001 (Technical Regulation of Customs Union);

·    TR CU 020/2011 (Technical Regulation of Customs Union);

·    GOST R MEK 60598-1-2011 (All-Union State Standard);

·    GOST 30804.3.2-2013 (All-Union State Standard);

·    GOST IEC 61547-2013 (All-Union State Standard);

·    STB IN 55015-2006 (Standards of Belarus).


Specifications:



·       Climatic class: UHL1, GOST 15150 (All-Union State Standard);

·       Operation conditions, GOST 17516.1 (All-Union State Standard);

·       Protection class:  IP65, GOST 14254 (All-Union State Standard);

·       The obstruction lights ZOM-2-VP are resistant to frost, rain, salt spray, dust, vibration strain, solar radiation, heat waves;

·       The light filter: transparent, red of shockproof optical polycarbonate with UV-stabilizer DOW® (Switzerland);

·       Body material: shockproof polycarbonate with UV-stabilizer Bayer Makrolon® (Germany);

·       Weight: no more 1.0 kg.


Electrical specifications:



·       Input power voltage, U(in): 50-265V AC. 30-350V DC;

·       Input current AC/DC, I(in). (mÀ): 45…200;

·       Maximum power consumption, no more (W): 6;

·       Maximum switching contact voltage Contr, (V): 400;

·       Maximum switching contact current Contr, (mA): 100.

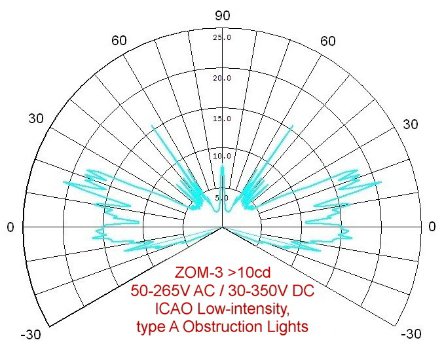

Optical specifications:



·       The light source - a semiconductor LED device;

·       Failure-free operation:8000 hours;

·       Emission: circular, red color;

·       Light dispersion angle: rated 16 º, actual 24 º;

·       Directed light intensity +6°: 35cd;

·       Directed light intensity +10°: 28cd;

·       Directed light intensity -6°: 10cd.


Design advantages:



·    A wide range of power voltage enables to switch the obstruction lights ZOM-2-VP with both AC and

     DC power sources irrespective of polarities.

·    The inbuilt monitoring status system enables to control performance of not only the whole

     obstruction lights set, but also each separate light remotely.

·    The monitoring status system contains galvanically isolated normally-closed contacts, which allows

     getting it integrated into any remote monitoring structure.


None of LED light source used in obstruction lights, which is available on the market, does not have the complete list of advantages implemented in the obstruction lights of ZOM line.


Complete set:



1.  The obstruction light (a body of light equipment)         1 item

2.  Stationary LED module                                              1 item

3.  Manual                                                                     1 item



Main mounting and operation requirements:

The obstruction lights are mounted by a holder (a base stand) with outer G ¾” thread. The mounting base stands are installed on top of high objects (roofs, etc.), subject to light obstruction.

A stationary LED module is a light source in the obstructions lights ZOM-2-VP, which does not require any service and replacement for the entire period of its operation.

So as to connect power and monitoring cables, you should unscrew the top part of the obstruction light (the light filter) from its base and then get them connected. While assembling the obstruction light, make sure that the rubber seal is tightly seated. You should brush the light filter with clean cotton, soft flannel or suede leather without using any solvent or grinding materials, if it gets dirty. Finally, you should clean it with spirits-soaked cotton.


Mounting options:

obstruction lights ZOM-2-VP


Packaging:


The obstruction lights packaging according to GOST 23216 (All-Union State Standard) for storage conditions 2 (s) GOST 15150 (All-Union State Standard). The lights ZOM-2-VP are packed in a shipping container, which secures safety and protection from any mechanical damage and atmospheric precipitation.



Labor safety rules:


To provide safety operating the obstruction light, it is prohibited:

·   To replace the stationary LED module of the obstruction light ZOM-2-VP for the light source with

     lower light intensity value;

·    To carry out any operations with the obstruction lights with power on;

·    To assemble or operate the obstruction light with damaged insulation;

·    To assemble and operate the obstruction lights, it is required to follow PUE (Electrical Equipment

     Rules).


Data about claims:

The claims are made to the supplier in case any defects and malfunctions can be found which lead to the obstruction lights ZOM-2-VP breakdown before warranty period expires.

You should state in the claim report:

The obstruction light type, defects and malfunctions, conditions under which they were found, the operation time of the device. The copy of the payment document for the device must be attached to the report.


Manufacturer warranty:


The company guarantees 2-year non-failure device operation, if all operation rules are observed.



Payment and Delivery:



We perform shipping to any region on Incoterms-2010 conditions.

Terms and delivery conditions are discussed individually.

Settlements are made by means of a bank transfer with an advanced contract on delivery.
